Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Howang
  • Model Number: HW-09KGH
  • Type: Rotary Potentiometer
  • Technology: Carbon Film
  • Resistance: 500 ~1M
  • Resistance Tolerance: 10%
  • Rated Power: 0.05W
  • Max. Operating Voltage: AC 50V/DC 10V
  • Operating Temperature: -10 ~ +70
  • Certification:: ISO9001;ISO14001
  • Rotational Torque: Standard life: 30,000 Cycles Min.; Long life: 100,000 Cycles Min.
  • Operating Direction: Horizontal Vertical
  • Number of Gangs: 1-2
  • Power-linear: 0.05W
  • Power-audio: 0.05W
  • Life cycle: 10K
  • Switch Option: N/A
  • Detent Option: Y
  • Key words: Rotary Potentiometer

Packaging & Delivery

Packaging Details 1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Delivery Time Shipped in 10 days after payment



1.Closed structure improves dust and flux resistance.

2.Available with bushing, tap and detent.


Electrical characteristics
Total Resistance 1KΩ~1MΩ
Total Resistance Tolerance 500Ω1MΩ: ±30%
Resistance Taper A, B, C
Max. Operating Voltage AC 50V
Rated Power 0.05W
Rotational Noise Less than 100mV
Insulation Resistance More than100MΩ at DC 250V
Withstand voltage 1 minute at AC 500V
Residual Resistance Term.1~2: Less than 20Ω:Term.2~3: Less than 20Ω
Gang Error (Dual Unit) -40db~0db±3db

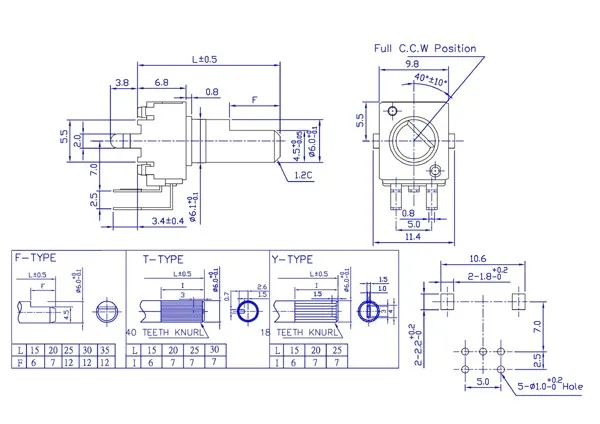

Mechanical characteristics
Total Rotational Angle 300°±10°
Rotational Torque 30gf.cm~130gf.cm
Click Torque 60gf.cm~220gf.cm
Stopper Strength Without bushing: 3.0kgf.cm Min.: With bushing: 5.0Kgf.cm Min.
Push-Pull Strength 8.0Kgf Min
Rotational Life Standard life: 15,000 Cycles Min.: Long life: 100,000 Cycles Min.













Company Information

Guangdong Huizhou Howang Electronics CO.,LTD

Business mission:

Customer’s success is our success.


Perfect Products, Best Service, Promote E-Concepts.


Honorable, Respectable, Responsible.

Quality Policy:

Keep Improving, Quality Assurance

The management create the value, the quality change the world.

The earnest practicality to serve customer, study and research the innovation feedback society.

The PS environmental protection organization has been setup. Promotes environmental protections with our efforts through the business activities, saving resources and reducing wastes.

In order to protect human health and environmental quality, we here certify that all products supplied from us are complied with EC Rohs directives requirements. If there is any violation against above announcement, we will be responsible for the cost incurred.



Q: Can you provide us samples, is it free or need to pay?

A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.


Q: How to deliver?

A: By sea or by air or courier like UPS, DHL, FedEx.


Q: Whats your payment term?

A: T/T or Western Union

30% deposit, the 70% balance before shipment.


Q: Where is your factory located, is it convenient to visit?

A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.





shippment & payment:

we have our own manufacture factory and the experrienced manufacture team in Huizhou.

we will give you the lower price and the first-class quality.


This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days


Delivery time: 12 days

Payment terms: 30% deposit before production, 70% balance before shipment.


Attn: Rebecca.Chen

Email:  howangdz@ 163.com

Skype: rebecca.chen87@ yahoo.com

Mobile /Whatsapp/wechat:+86 18675461858


Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.

Tel: 0086-752-6610869
Fax: 0086-752-6610819

Guangdong Huizhou Howang Electronic Co., Ltd


http:// www.howang.en.alibaba.com
