Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Howang
  • Model Number: GTM06 series
  • Type: Trimming Potentiometer
  • Technology: Carbon Film
  • Resistance: 500 ~1M
  • Resistance Tolerance: 10%
  • Rated Power: 0.05W
  • Max. Operating Voltage: AC 50V/DC 10V
  • Operating Temperature: -20 ~ +70
  • Certification:: ISO9001;ISO14001
  • Package diameter: 6mm
  • Operating Direction: Horizontal Vertical
  • Life cycle: 50K cycles
  • Switch Option: N/A
  • Mounting: Through hole
  • Element: Cermet
  • Temperature ppm/℃: +/-250
  • Tolerance: +/-20%
  • Power rating: 0.3 W

Packaging & Delivery

Packaging Details 1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Delivery Time Shipped in 7 days after payment

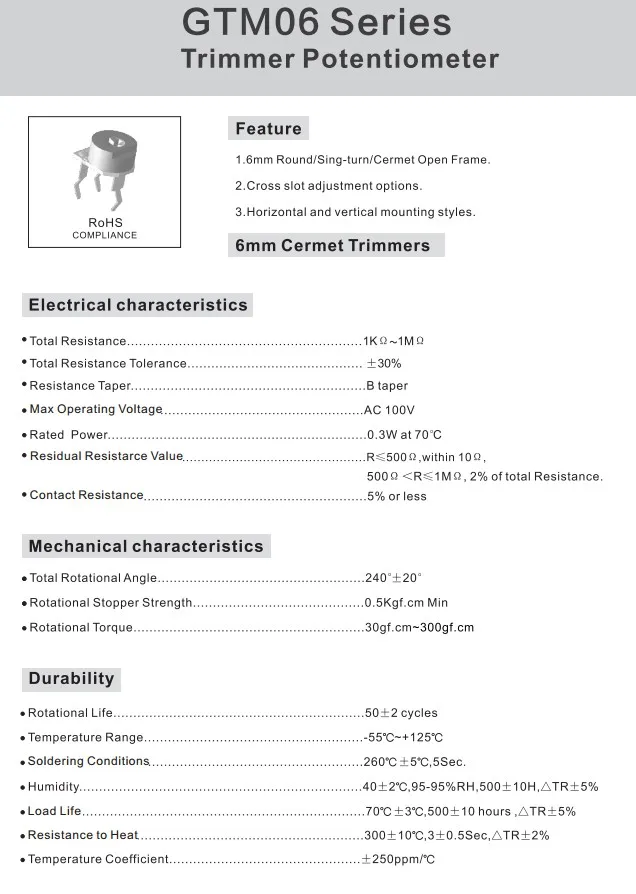

Introduction:

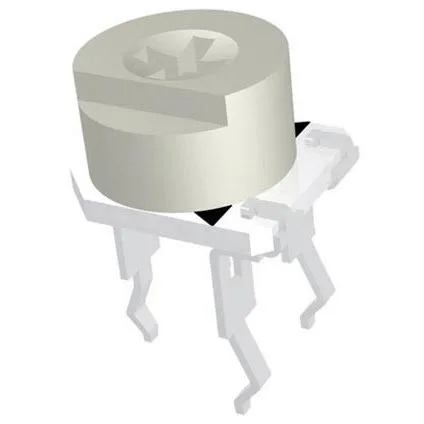

1.6mm Round/Sing-turn/Cermet Open Frame.

2.Cross slot adjustment options.

3.Horizontal and vertical mounting styles.



Electrical characteristics
Total Resistance 1KΩ~1MΩ
Total Resistance Tolerance ± 30%
Resistance Taper B taper
Max operating Voltage AC 100V
Rated Power 0.3W at 70°C
Residual resistance value R<500Ω,within 10Ω,500Ω
Contact resistance 5% or less
Mechanical characteristics
Total Rotational Angle 240°±20°
Rotational Stopper Strength 0.5Kgf.cm Min
Rotational Torque 30gf.cm~300gf.cm
Durability
Rotational Life 50±2 cycles
Temperature Range-55℃~+125℃
Soldering conditions260℃ ±5℃,5Sec.
Humidity40±2℃,95-95%RH,500±10H,TR±5%
Load life70℃ ±3℃,500±10 hours ,TR±5%
Resistance to heat300±10℃,3±0.5Sec,TR±2%
Temperature Coefficient±250ppm/℃







 HOW to order?





Assembly Department

The 1st manufacturing section

Production :
F-091 Series ; F-092 Series; F-093 Series;
F-094 Series; F-095 Series; F-24K Series;
F-081 Series; F-082 Series; F-131K Series;
P270 Series; P160 Series; JM10K Series;
JN10K Series; JP10K Series; FSR08 Series;
FSR10 Series; J08K Series Rotary Potentiometer,

Switch and so on
Monthly Output:
12,000,000 pcs

Typical Application:

Mixing consoles and electronic musical instruments,

DVD player/recorders in car,

game consoles and flat panel TV,

electronic toy controllers ,Remote controllers for audio

system and TVS and so on.



The 2rd manufacturing section:
Production:
1.F-08E Series F-11E Series; F-12E Series; F-16E Series

 rotary encoder

and so on
2. Fxx92 Series; F05G Series; F035G Series;
Fxx31 Series; Fxx05 Series; Fxx06 Series;
Fxx43 Series; Fxx45 Series; Fxx2G Series;
F10008GP Series; Fxx46 Series slide potentiometer
and so on
3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer

and so on

Monthly Output:
5,000,000 pcs

Typical Application:
1. Mixing consoles, DVD play / Recorder, Various AV equipment,

Navigation systems in car and so on
2. Electronic musical instruments, Dimmer .protable audio and

 various audio equipment and so on
3. Automobile accessories.



 Automatic Assembling Machines

 Stable and consistent quality

 High efficiency

 Low defective rate

Contact

shippment & payment:

we have our own manufacture factory and the experrienced manufacture team in Huizhou.

we will give you the lower price and the first-class quality.



This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days



Delivery time: 12 days

Payment terms: 30% deposit before production, 70% balance before shipment.



Attn: Rebecca.Chen

Email:  howangdz@ 163.com

Skype: rebecca.chen87@ yahoo.com

Mobile /Whatsapp/wechat:+86 18675461858



Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.

Tel: 0086-752-6610869
Fax: 0086-752-6610819
