Rotary Switch and Hongwang 2 pole 5 position rotary switch

FOB Reference Price:Get Latest Price
US $0.01-0.85 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Howang
Model Number:
HW-24KNP
Max. Current:
0.5A
Max. Voltage:
12V DC
Brand:
Howang
Product name:
rotary potentiometer
Size:
9mm
Certification::
ISO9001;ISO14001
Long rotary life (Rotational life):
300000 cyles
ROHS Y/N:
100% yes
Supply Ability
Supply Ability:
1800000 Piece/Pieces per Month Provide OEM/ODM service
Packaging & Delivery
Packaging Details
1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Port
shenzhen
Lead Time :
Shipped in 7 days after payment

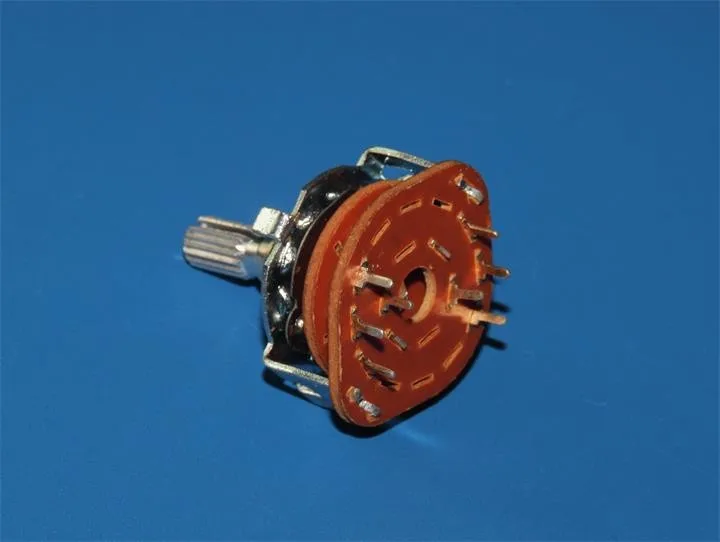

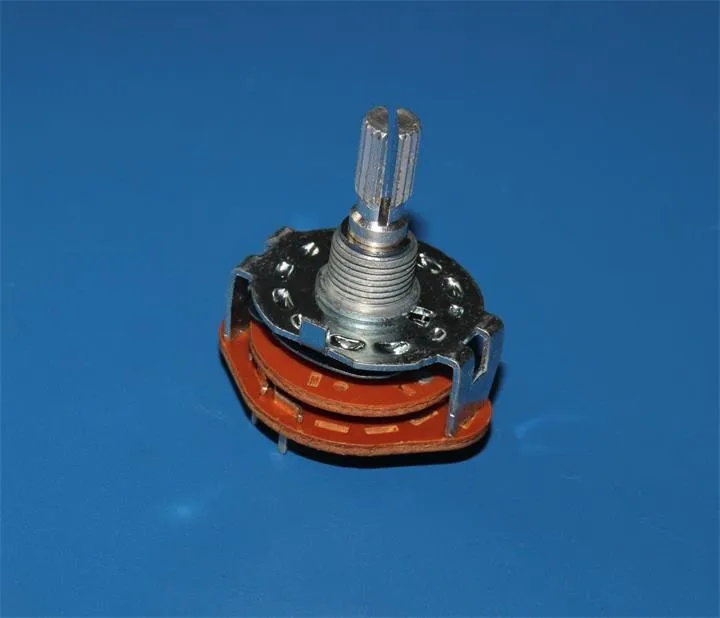

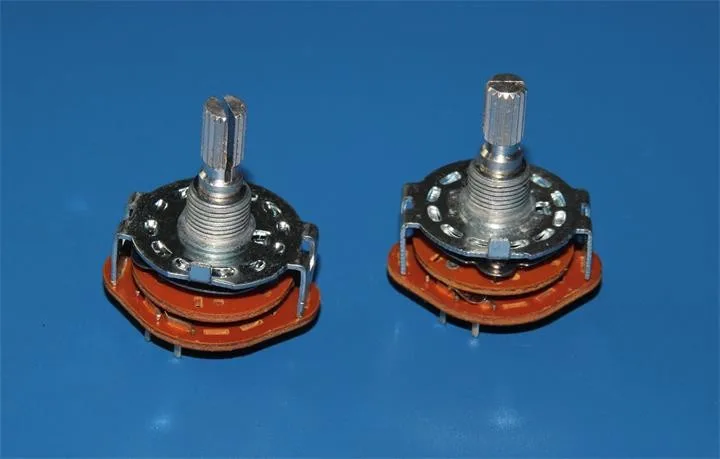

Rotary Switch
RoHS part with stable quality
long rotary life:15,000 cycles min
Soundwell customers include SAMSUNG,LG,BEHRING


  • Rotary Switch
    RoHS part with stable quality
    long rotary life:15,000 cycles min
    Soundwell customers include SAMSUNG,LG,BEHRINGER...
  • Standard atmospheric conditions:
  • Unless otherwise specified, the standard range of atmospheric conditions for making measurements and test is as follows:Rated voltage: DC 30V
    • Ambient temperature: 15 to 35 degrees C
    • Relative humidity: 25% to 85%
    • Air pressure: 86 to 106kPa
    • Operating temperature range: -10 to 70 degrees C
    • Storage temperature range: -40 to 85 degrees C
  • Maximum operating current (resistive load): 0.3A
Product Description



1.Includes 2,3,4,5,6 detents.

2.Max 6 detents applicable to the rotary switch.



Electrical characteristics
Rating 0.1A, DC 16V
Initial Contact Resistance 50mΩ Max
Insulated Resistance 100MΩ min at 100V DC
Withstand Voltage AC 100V for 1 minute
Operating Temperature  Range-30℃~+85℃
Mechanical characteristics
Terminal strength 510gf (5N) for 1 minute
Stopper Strength 5.1Kgf.cm Min
Changeover Angle 30±3°
Wobble of Shaft 0.17mm Max;(Measure from 10mm mounting surface)
Detent Torque 408±204gf.cm
Number of Detents2C,3C,4C,5C,6C
Push-pull Strength Push: 10.2Kgf max for 10SPull: 10.2Kgf max
Durability
Rotational Life 10,000 Cycles Min
Soldering Condition Manual soldering:350℃ ±10℃,3Sec.
Humidity40±2℃ 90~95% RH for 96 hours,CR is 150mΩ Max
Dry heat for long term85±2℃ for 96 hours  CR is 150mΩ Max
Cold-30±2℃ ,for 96 hours, CR is 150mΩ Max
Temperature cycles-30℃ ~+85℃,5 cycles





Assembly Department

The 1st manufacturing section

Production :
F-091 Series ; F-092 Series; F-093 Series;
F-094 Series; F-095 Series; F-24K Series;
F-081 Series; F-082 Series; F-131K Series;
P270 Series; P160 Series; JM10K Series;
JN10K Series; JP10K Series; FSR08 Series;
FSR10 Series; J08K Series Rotary Potentiometer,

Switch and so on
Monthly Output:
12,000,000 pcs

Typical Application:

Mixing consoles and electronic musical instruments,

DVD player/recorders in car,

game consoles and flat panel TV,

electronic toy controllers ,Remote controllers for audio

system and TVS and so on.


The 2rd manufacturing section:
Production:
1.F-08E Series F-11E Series; F-12E Series; F-16E Series

 rotary encoder

and so on
2. Fxx92 Series; F05G Series; F035G Series;
Fxx31 Series; Fxx05 Series; Fxx06 Series;
Fxx43 Series; Fxx45 Series; Fxx2G Series;
F10008GP Series; Fxx46 Series slide potentiometer
and so on
3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer

and so on

Monthly Output:
5,000,000 pcs

Typical Application:
1. Mixing consoles, DVD play / Recorder, Various AV equipment,

Navigation systems in car and so on
2. Electronic musical instruments, Dimmer .protable audio and

 various audio equipment and so on
3. Automobile accessories.


 Automatic Assembling Machines

 Stable and consistent quality

 High efficiency

 Low defective rate

Quality Certificates
Quality Certificates & Environment Guideline
HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC
ISO9001%EF%BC%9A2008%E8%8B%B1%E6%96%87(4)ISO14001%EF%BC%9A2004%20%E8%8B%B1%E6%96%87(4)
ts1694901ts1694902
 environmentrohs1
