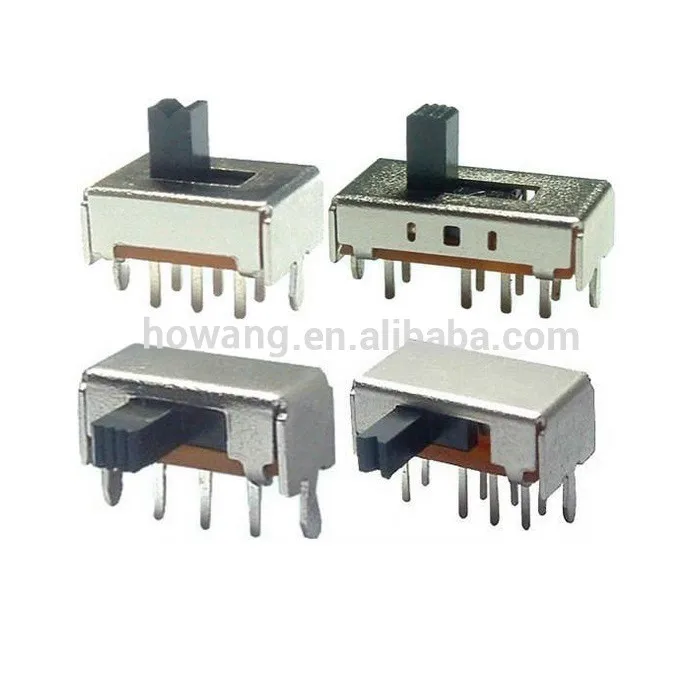

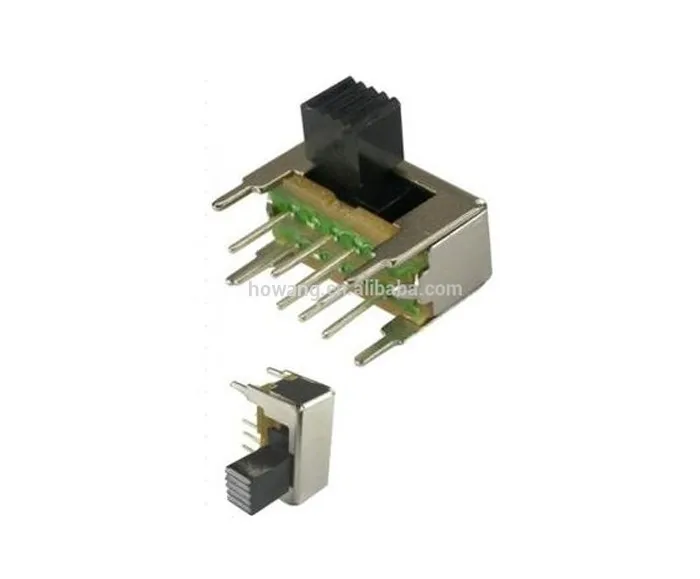

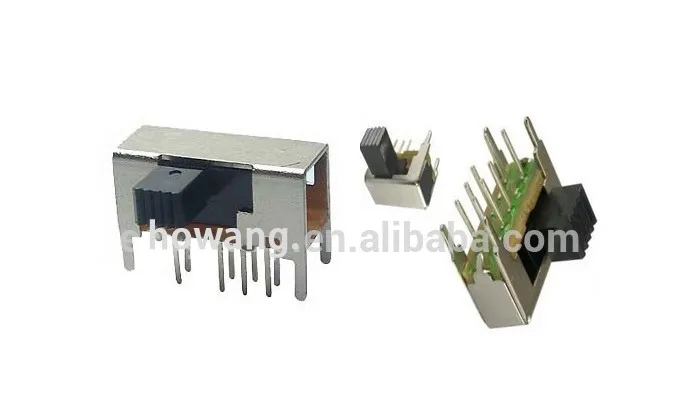

Miniature Slide Switch 2P3T about 0.5A 50V DC

FOB Reference Price:Get Latest Price
US $0.01-0.08 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
howang
Model Number:
HW23D29N-GJ18211
Max. Current:
0.5A
Max. Voltage:
30VDC
Mechanical Life:
10000 Cycles
Function:
:2p3t
Certification:
ROHS
Operate force:
200+/-100gf
Product type:
:High Current Carrying Capacity Switch
Type:
Standard
Rating:
0.5A 50VDC
Color:
: Black
Contact Resistance:
30 Ohm
Pack:
Reel Package
Supply Ability
Supply Ability:
1800000 Piece/Pieces per Month Provide OEM/ODM service
Packaging & Delivery
Packaging Details
1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Port
shenzhen
Lead Time :
Shipped in 7 days after payment

  Miniature-Slide-Switch-2P3T-about-0-5A (1).jpgMiniature-Slide-Switch-2P3T-about-0-5A .jpgMiniature-Slide-Switch-2P3T-about-0-5A.jpg

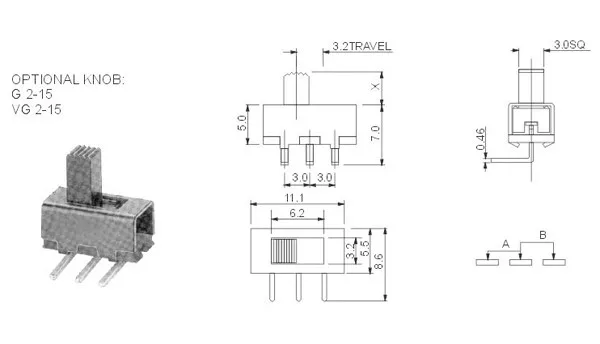

This is a simple SPDT slide switch - great for use as an ON/OFF button, or just as a general control switch. The pins are spaced by 0.1", however they are incredibly thin making breadboard use not recommended. The switch is rated for 0.3A at 50VDC.

This switch is just a bit smaller than our popular SPDT Mini Power Switch, but uses the same pin spacing. Being smaller takes up less PCB space (good!), but it does make it a bit harder to hit and flip easily.



Product details and Introdution

1.Adopt ultrathin, Miniature structure.

2.Long life 100,000 cycles min.

3.Design for composite control .



Electrical characteristics
Rated Voltage 5A, DC 5V
Insulation Resistance More than 100MΩ at DC 100V Withstand Voltage: 1 minute at AC 100V
Sliding Noise T2<3ms
Fluttering T1, T3<8ms
Mechanical characteristics
Operating Force Push Force: 2±1N (102~306gf)
Level Force 0.65± 0.4N (25.5~107gf) Terminal Strength: 3N (306gf) for 1min
Wobble of Actuator p-p: 2mm Max
Actuator strength Push direction: 50 N (5.1Kgf)
Operation direction 10N (1.02Kgf)
Durability
Operating Life 100,000 Cycles
Push Life 100,000 Cycles
Operating temperature range-10℃~+60℃







Assembly Department

The 1st manufacturing section

Production :
F-091 Series ; F-092 Series; F-093 Series;
F-094 Series; F-095 Series; F-24K Series;
F-081 Series; F-082 Series; F-131K Series;
P270 Series; P160 Series; JM10K Series;
JN10K Series; JP10K Series; FSR08 Series;
FSR10 Series; J08K Series Rotary Potentiometer,

Switch and so on
Monthly Output:
12,000,000 pcs

Typical Application:

Mixing consoles and electronic musical instruments,

DVD player/recorders in car,

game consoles and flat panel TV,

electronic toy controllers ,Remote controllers for audio

system and TVS and so on.


The 2rd manufacturing section:
Production:
1.F-08E Series F-11E Series; F-12E Series; F-16E Series

 rotary encoder

and so on
2. Fxx92 Series; F05G Series; F035G Series;
Fxx31 Series; Fxx05 Series; Fxx06 Series;
Fxx43 Series; Fxx45 Series; Fxx2G Series;
F10008GP Series; Fxx46 Series slide potentiometer
and so on
3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer

and so on

Monthly Output:
5,000,000 pcs

Typical Application:
1. Mixing consoles, DVD play / Recorder, Various AV equipment,

Navigation systems in car and so on
2. Electronic musical instruments, Dimmer .protable audio and

 various audio equipment and so on
3. Automobile accessories.


 Automatic Assembling Machines

 Stable and consistent quality

 High efficiency

 Low defective rate
