Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Howang
  • Model Number: HWGQ22PF-ET
  • Max. Current: 2A
  • Max. Voltage: 36VDC
  • Product name: power symbol stainless steel push button switch
  • item: Metal push button switch (22mm)
  • Application: small circuit control
  • Manufacturer: Yes
  • Mounting Hole Size: 22mm
  • Material: stainless steel
  • Certerficate: CE ROHS
  • Protection Degree: IP65,IK08
  • Original: Huizhou ,China
  • ROHS: Can be made to order

Packaging & Delivery

Packaging Details 1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Delivery Time Shipped in 10 days after payment

 Product details and Introdution



Why Choose Us ?

1.More than10 years professional production & selling push button switch experience .

2.Best Quality & Best Price .

3. Have perfect certificate: CCC/CE/ROHS/ISO90001.

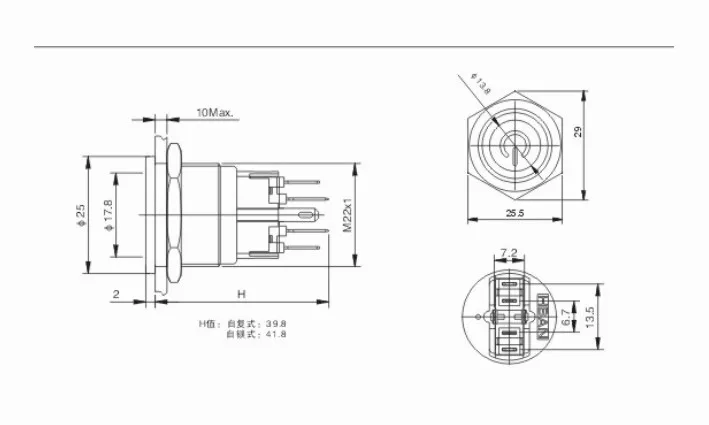

Parameter:

HWGQ22  Metal Push Button Switch

Mounting Hole Size: Φ22mm

Switch Rating : 5A/250VAC

Contact Configuration:1NO1NC

The Front Shape: Hyperplane

The Crust Material:Stainless Steel

Protection Degree:IP65,IK08

Terminal Type: Pin terminal (2x0.5mm)

Switch Specification: 2A/36VDC

Panel Thickness:1-6mm

Torque: 5-14Nm

Operating Pressure: About 4N

Operating Stroke : About 1.5mm

Contact: Sliver Alloy

Button: Stainless steel;Mirror Surface; CD Pattern

Base: PBT

ROHS: Can be made to order





Welcome,my friend! Glad to introduce electric switch high illumination metal LED 19mm power symbol illuminated push button switches
If you have any questions, please don't hesitate to ask me!
We control every aspect !!


1.Product namePush Button switch
2.Product modelFLM19SS-F11-C
3.Electrical parameters3A /250VAC
4.Use temperature range-20℃~+55℃
5.Protection levelIP67 ,IK10,IP40
6.Switch combination1N01NC
7.Operation typemomentary/latching
8.Life span40000 hours
9.Performance Mechanical propertiesItemTest conditionSpecificationsAction forceThe load is applied along the vertical directionAbout 4~5NMechanical lifeIn no load conditions, to 30 times / min speedOperation cycle number of 500000 timesSolder resistanceSolder temperature230±5℃ Immersion time3±0.5SImmersing area of tin pick-up more than 90%Heat resistanceSolder temperature260±5℃ Immersion time5±1SElectrical, mechanical performance is no exception

















How to order?





Contact

shippment & payment:

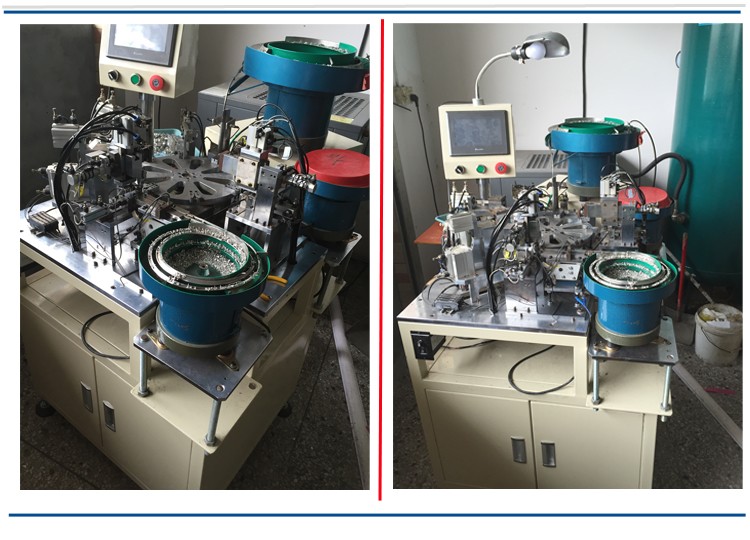

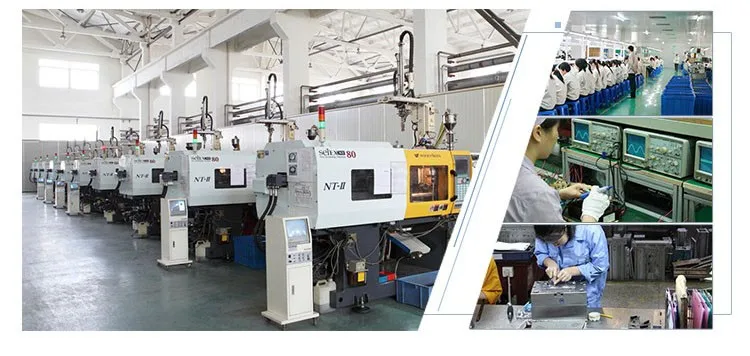

we have our own manufacture factory and the experrienced manufacture team in Huizhou.

we will give you the lower price and the first-class quality.



This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days



Delivery time: 12 days

Payment terms: 30% deposit before production, 70% balance before shipment.

Attn: Kevin

Whatsapp:+86 18820393453

Wechat: +86 18820393453

Mobile: +86 18820393453

Skype:fax9981 © hotmail.com

 Email:  kevincosmetic © outlook.com

             howangdz © 163.com

             tel9981 © 163.com

Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.

Tel: 0086-752-6610869
Fax: 0086-752-6610819

Guangdong Huizhou Howang Electronic Co., Ltd

-----------------------------------------------------------------------
