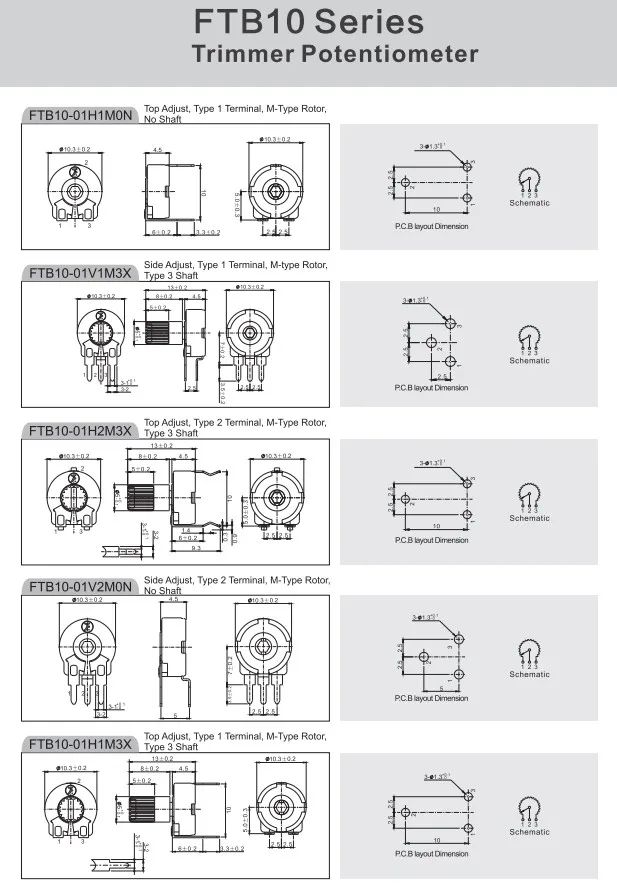

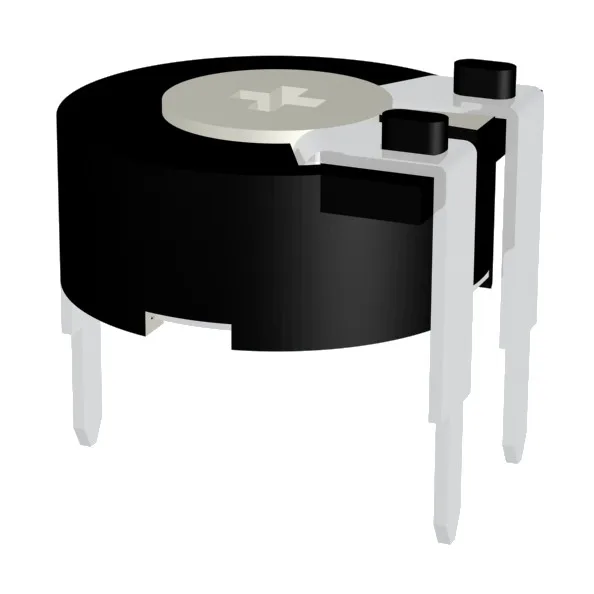

FTB10 series Open-Type Trimmer Open type with all kinds of usage trimming potentiometer Trimmer Spanish Potentiometer

FOB Reference Price:Get Latest Price
US $0.01-0.3 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Howang
Model Number:
FTB10 series
Type:
Trimming Potentiometer
Technology:
Carbon Film
Resistance:
500 ~1M
Resistance Tolerance:
10%
Rated Power:
0.05W
Max. Operating Voltage:
AC 50V/DC 10V
Operating Temperature:
-20 ~ +70
Certification::
ISO9001;ISO14001
Package diameter:
6mm
Operating Direction:
Horizontal Vertical
Life cycle:
10K cycles
Switch Option:
N/A
Mounting:
Through hole
Element:
carbon
Temperature ppm/℃:
+/-500
Tolerance:
+/-20%
Power rating:
0.15W
Supply Ability
Supply Ability:
1800000 Piece/Pieces per Month Provide OEM/ODM service
Packaging & Delivery
Packaging Details
1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Port
shenzhen
Lead Time :
Shipped in 7 days after payment


Introduction:



1.Carbon resistive element



2.Dust proof enclosure



3.Housing available in self extin plastic(UL91V-0)







Electrical characteristics
Total resistance range 1KΩ~1MΩ
Resistance Tolerance1KΩ<TR<1MΩ±20%,100Ω<TR<1KΩ±30%; 1MΩ<TR<5MΩ±30%
Resistance Taper A, B, C etc.
Voltage rating B Taper: DC 200V; other taper: DC 100V
Contact Noise150mV Max(TR<1MΩ);300mV Max(TR>1MΩ)
Residual resistance value R<100KΩTerminal 1~2and 2~3:10ΩMax; R>100KΩTerminal 1~2and 2~3:Less than 0.5% of total resistance
Electrical rotational Angle 200°±20°
Mechanical characteristics
Total Rotational Angle 235°±10°
Stopper Strength 500gf.cm Min
Rotational Torque 20gf.cm~200gf.cm
Environmental characteristics
Temperature Range-25℃~+70℃
Power rating B Taper:@50℃,0.15W;A,C Taper:@50℃,0.07W
Temperature Coefficient±500ppm/℃(TR<100K)
±1000ppm/℃(TR>100K)at-25℃~+70℃
Humidity95%RH at 40℃,500H,TR±10%
Dry heat70±3℃,240H,TR+5/-15%
Load life@50℃,rated power 1000 hours, TR±10%
Resistance to soldering heat260±5℃;10 sec,TR±5%
Rotational Life10,000 cycles, TR±10%

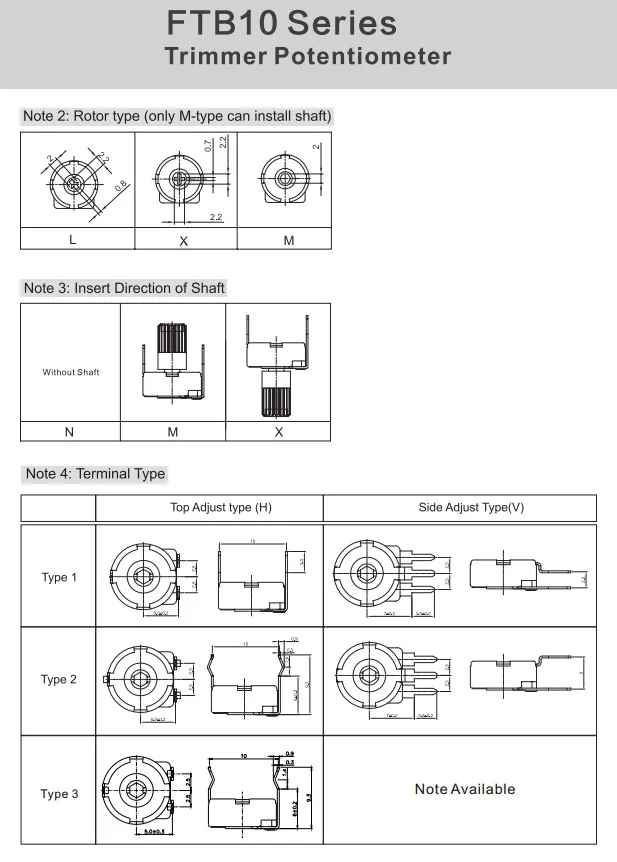

 HOW to order?




c

Assembly Department


The 1st manufacturing section

Production :
F-091 Series ; F-092 Series; F-093 Series;
F-094 Series; F-095 Series; F-24K Series;
F-081 Series; F-082 Series; F-131K Series;
P270 Series; P160 Series; JM10K Series;
JN10K Series; JP10K Series; FSR08 Series;
FSR10 Series; J08K Series Rotary Potentiometer,

Switch and so on
Monthly Output:
12,000,000 pcs

Typical Application:

Mixing consoles and electronic musical instruments,

DVD player/recorders in car,

game consoles and flat panel TV,

electronic toy controllers ,Remote controllers for audio

system and TVS and so on.


The 2rd manufacturing section:
Production:
1.F-08E Series F-11E Series; F-12E Series; F-16E Series

 rotary encoder

and so on
2. Fxx92 Series; F05G Series; F035G Series;
Fxx31 Series; Fxx05 Series; Fxx06 Series;
Fxx43 Series; Fxx45 Series; Fxx2G Series;
F10008GP Series; Fxx46 Series slide potentiometer
and so on
3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer

and so on

Monthly Output:
5,000,000 pcs

Typical Application:
1. Mixing consoles, DVD play / Recorder, Various AV equipment,

Navigation systems in car and so on
2. Electronic musical instruments, Dimmer .protable audio and

 various audio equipment and so on
3. Automobile accessories.


 Automatic Assembling Machines

 Stable and consistent quality

 High efficiency

 Low defective rate
