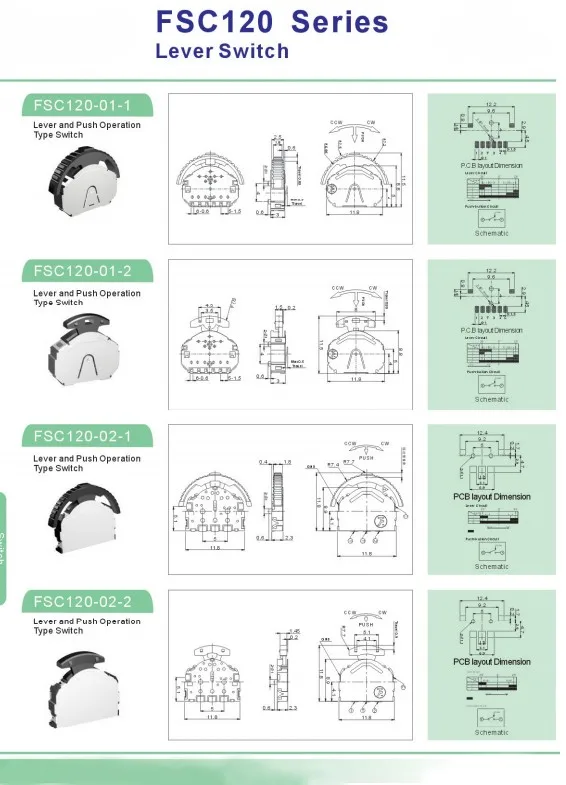

FSC120 Lever switch Designed for composite control, adopt ultra-thin structure

FOB Reference Price:Get Latest Price
US $0.01-0.55 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Howang
Model Number:
FSC120
Max. Current:
5A
Max. Voltage:
12V
Product name:
lever switch
Certification::
ISO9001;ISO14001
Long rotary life (Rotational life):
50,000 Cycles Min without load
ROHS Y/N:
100% yes
Life cycle:
100k cycles
Switch Option:
Push
Detent Option:
N/A
Operating type:
Lever
Power rating:
10mA, DC 5V
Supply Ability
Supply Ability:
1800000 Piece/Pieces per Month Provide OEM/ODM service
Packaging & Delivery
Packaging Details
1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Port
shenzhen
Lead Time :
Shipped in 7 days after payment

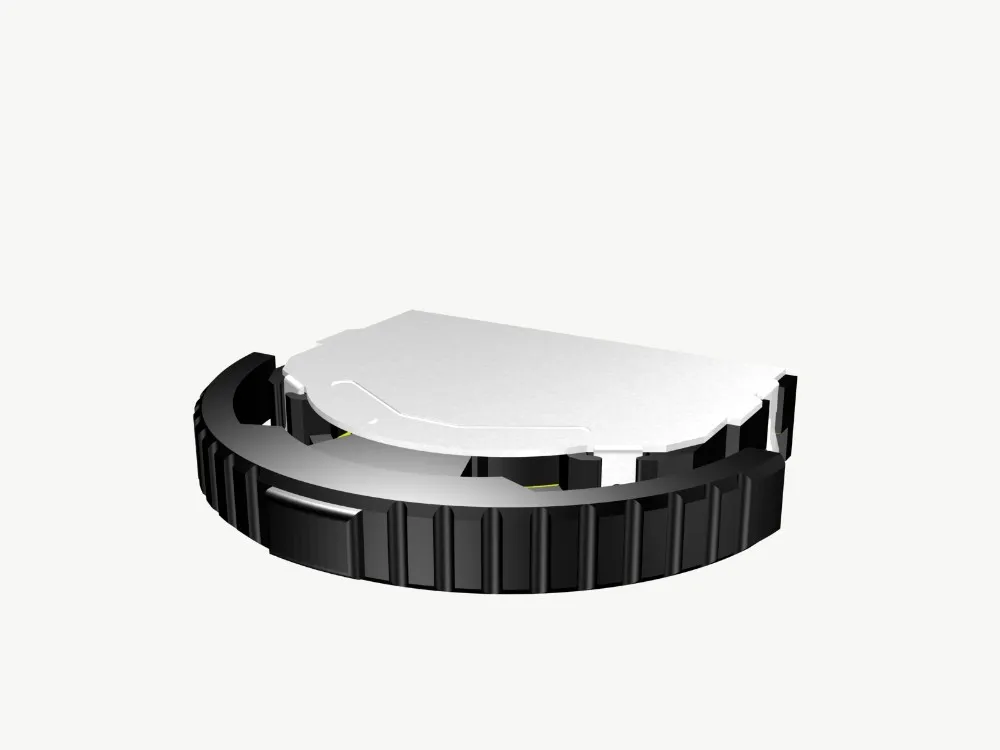

Surface mount 3-way switch. These switches are commonly found on handheld devices like MP3 players. This switch allows the user to navigate using up and down selections then select by pressing the plastic piece inwards. Capable of swtiching up to 1.2VA (360mA at 3.3V and 240mA at 5V).



Product details and Introdution

1.Adopt ultrathin, Miniature structure.

2.Long life 100,000 cycles min.

3.Design for composite control .



Electrical characteristics
Rated Voltage 10mA, DC 5V
Insulation Resistance More than 100MΩ at DC 100V Withstand Voltage: 1 minute at AC 100V
Sliding Noise T2<3ms
Fluttering T1, T3<8ms
Mechanical characteristics
Operating Force Push Force: 2±1N (102~306gf)
Level Force 0.65± 0.4N (25.5~107gf) Terminal Strength: 3N (306gf) for 1min
Wobble of Actuator p-p: 2mm Max
Actuator strength Push direction: 50 N (5.1Kgf)
Operation direction 10N (1.02Kgf)
Durability
Operating Life 100,000 Cycles
Push Life 100,000 Cycles
Operating temperature range-10℃~+60℃
