Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Howang
  • Model Number: FSR08
  • Max. Current: 5A
  • Max. Voltage: 12V

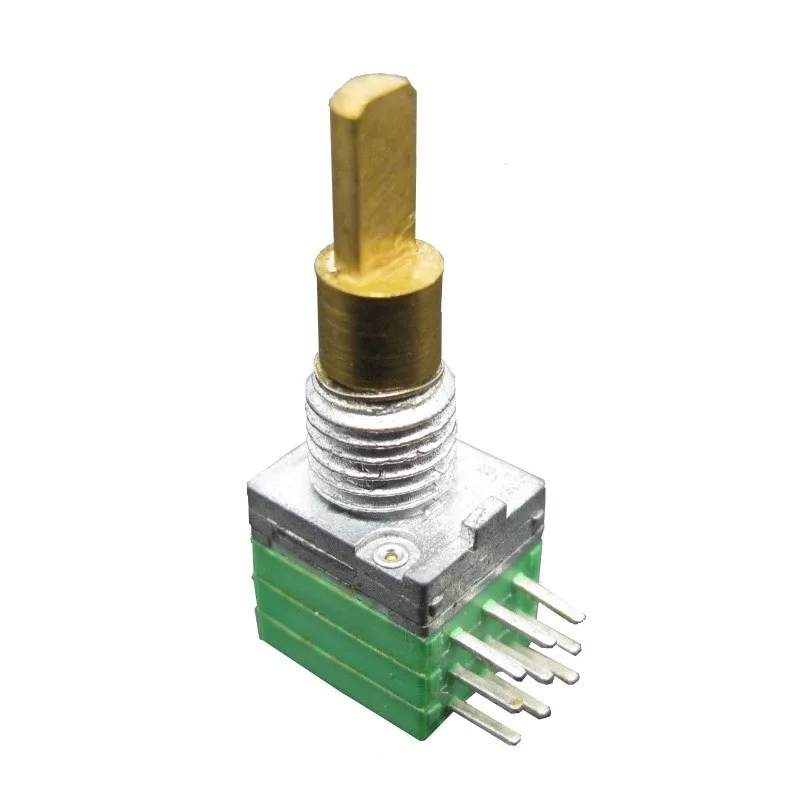

  • Product name: toggle switch
  • Certification:: ISO9001;ISO14001
  • Long rotary life (Rotational life): 50,000 Cycles Min without load
  • ROHS Y/N: 100% yes
  • Life cycle: 80K
  • Switch Option: Y
  • Detent Option: 16
  • Operating type: Rotary
  • Power rating: AC 50V, DC 10 V (1mA)

Packaging & Delivery

Packaging Details 1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Delivery Time Shipped in 7 days after payment

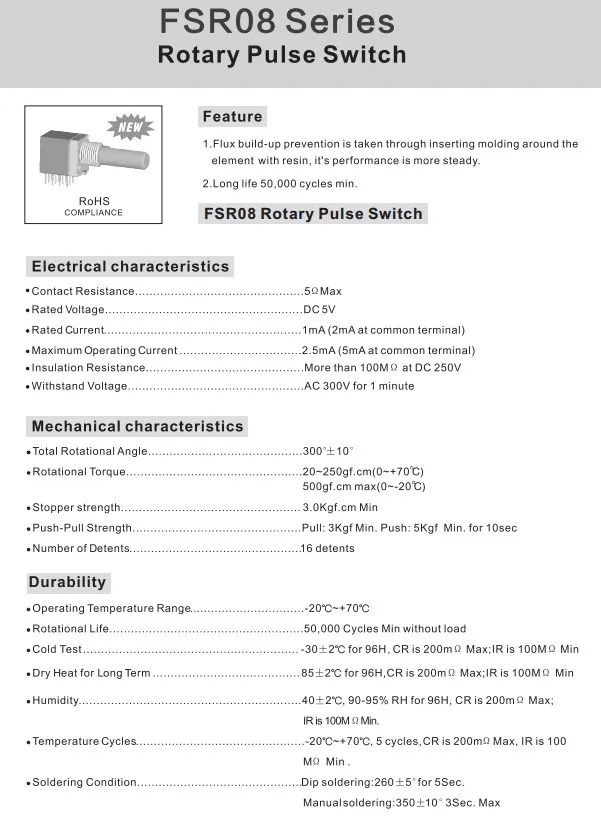

Product details and Introdution

1.Flux build-up prevention is taken through inserting molding around the element with resin, it's performance is more steady.

2.Long life 80,000 cycles min.



Electrical characteristics
Contact Resistance 5Ω Max
Rated voltage DC 5V
Rated current 1mA (2mA at common terminal)
Maximum Operating Current 2 .5mA (5mA at common terminal)
Insulation Resistance More than 100MΩ at DC 250V
Withstand Voltage AC 300V for 1 minute
Mechanical characteristics

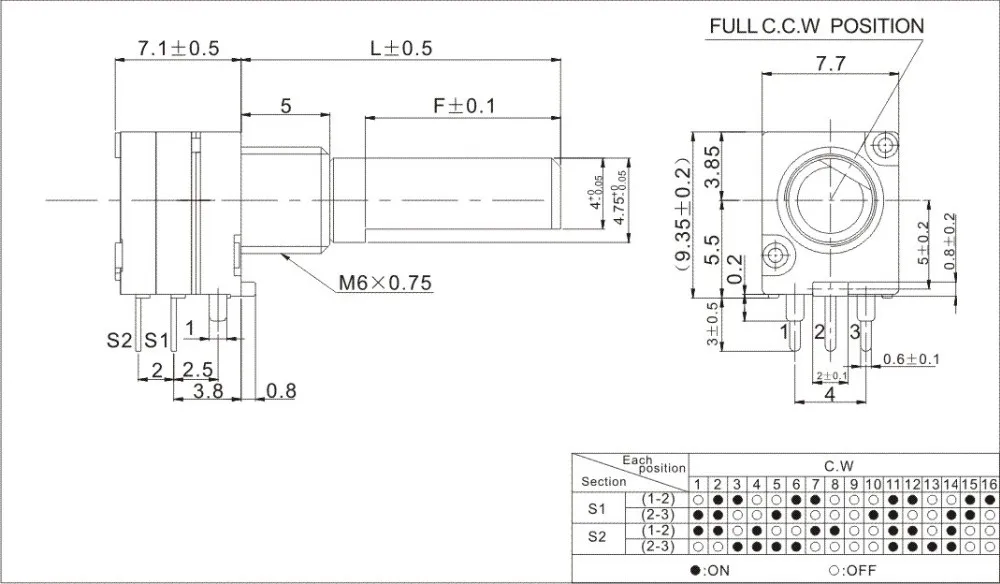

Total Rotational Angle 300°±10°
Rotational Torque 20~250gf.cm (0~+70°C);500gf.cm max (0~-20°C)
Stopper strength 3.0Kgf.cm Min
Push-Pull Strength Pull: 3Kgf Max.Push:5Kgf Max for 10sec.
Number of Detents 16 detents
Durability
Operating temperature range-20℃~+70℃
Rotational Life 50,000 Cycles Min without load
Cold test-30±2℃ for 96H , CR is 200mΩ Max; IR is 100MΩ Min
Dry heat for long term 85±2℃ for 96H,CR is 200mΩ Max; IR is 100MΩ Min
Humidity40±2℃, 90-95% RH for 96H, CR is 200mΩ Max;IR is 100MΩMin.
Temperature cycles-20℃~+70℃, 5 cycles, CR is 200mΩMax, IR is 100MΩ Min.
Soldering Condition Dip soldering: 260 ±5°for 5Sec.Manual soldering: 350±10°3Sec. Max

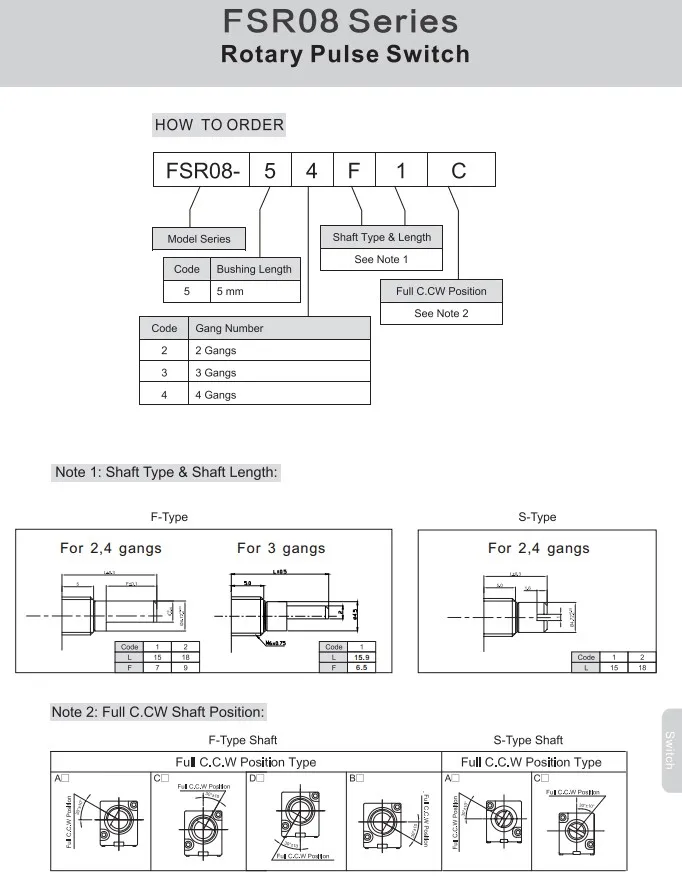

How to order?





Quality Certificates
Quality Certificates & Environment Guideline
HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC
