FSR1002 rotary switch Long life cycle pulse rotary switch with steady output

FOB Reference Price:Get Latest Price
US $0.01-0.73 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Howang
Model Number:
FSR1002
Max. Current:
5A
Max. Voltage:
12V
Certification::
ISO9001;ISO14001
Long rotary life (Rotational life):
50,000 Cycles Min without load
ROHS Y/N:
100% yes
Life cycle:
30K cycles
Switch Option:
Y
Detent Option:
20
Operating type:
Rotary
Power rating:
0.1A, DC 16V
SupplyAbility
SupplyAbility:
1800000 Piece/Pieces per Month Provide OEM/ODM service
Packaging & Delivery
Packaging Details
1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Port
shenzhen
Lead Time :
Shipped in 7 days after payment




Product details and Introdution

1.Rotary pulse swtich with 20 pulse.

2.Long life 30,000 cycles min.



Electrical characteristics
Rating 0.1A, DC 16V
Contact Resistance 50mΩ Max
Insulation Resistance More than 100MΩ at DC 100V
Withstand Voltage AC 100V for 1 minute
Mechanical characteristics
Total Rotational Angle 360°Continuous
Resistance to soldering heat 260°± 5C°, 5Sec. Max
Rotational Torque 70~230gf.cm
Changeover Angle 18°±3°
Shaft wobble 0.17mm Max.
Push-Pull Strength Pull: 10.2Kgf Min; Push: 10.2Kgf Min.
Number of detents (click) 20detent
Durability
Operating temperature range-30℃~+85℃
Rotational Life 30,000 Cycles Min, CR is 150mΩ Max
Cold -30±2℃ for 96 hours , CR is 150mΩ Max
Dry heat85±2℃ for 96 hours ,CR is 150mΩ Max
Damp heat40±2℃ , 90~95% RH for 96 hours, CR is 150mΩ Max

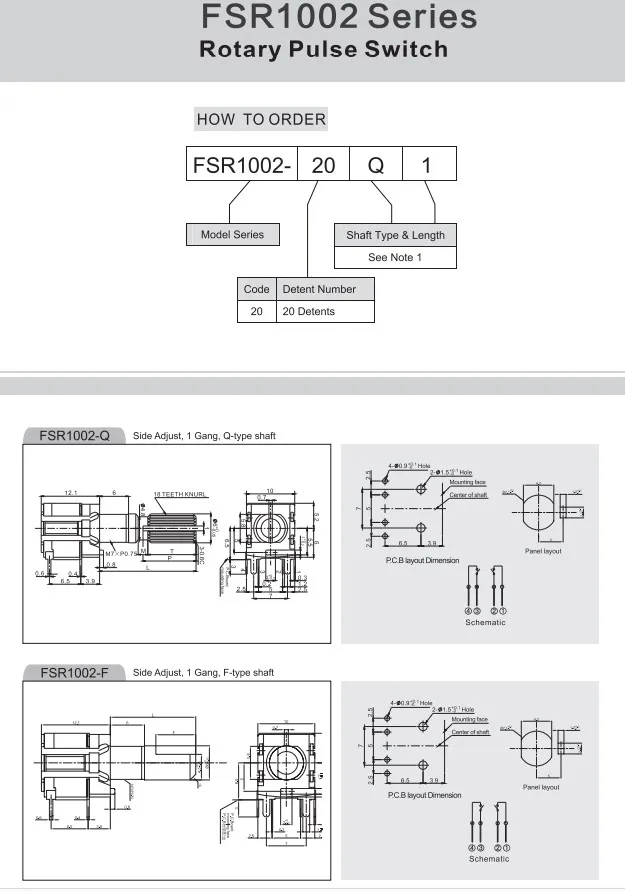

How to order?




b



Quality Certificates
Quality Certificates & Environment Guideline
HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC
ISO9001%EF%BC%9A2008%E8%8B%B1%E6%96%87(4)ISO14001%EF%BC%9A2004%20%E8%8B%B1%E6%96%87(4)
ts1694901ts1694902
 environmentrohs1
