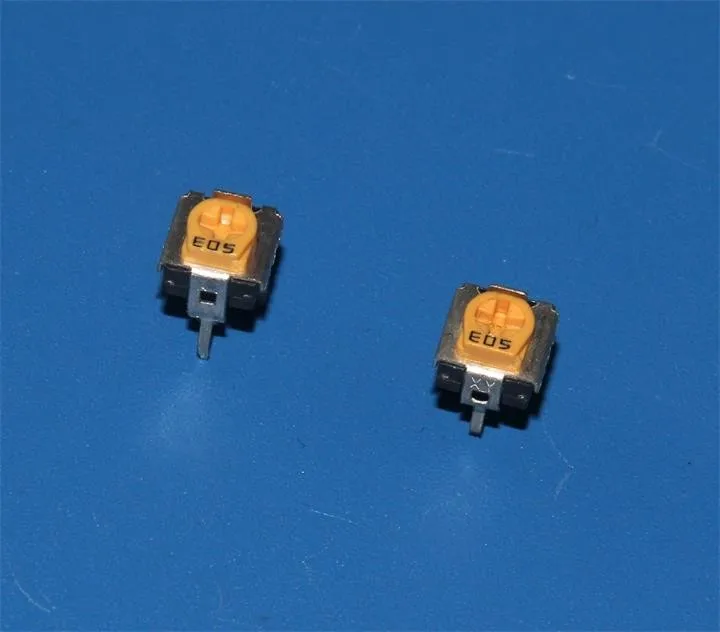

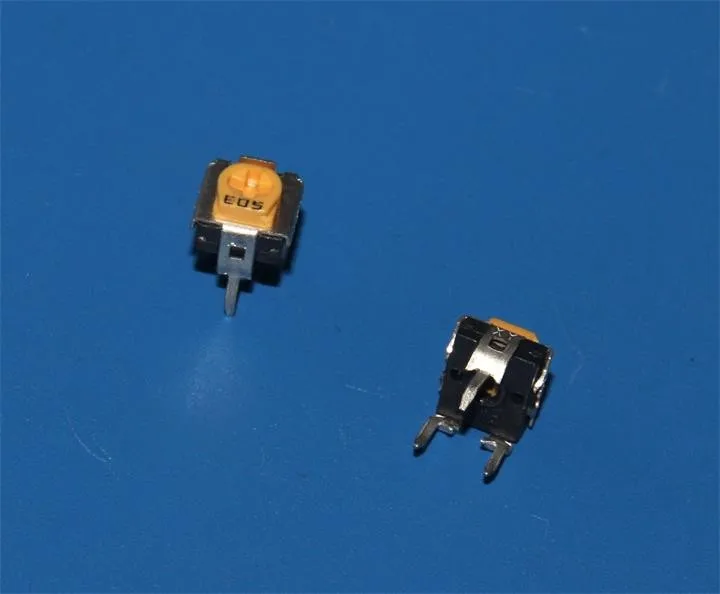

DB-066N 6mm trimmer potentiometers,trimmer potentiometer 10k

FOB Reference Price:Get Latest Price
US $0.01-0.4 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Howang
Model Number:
DB-066N
Type:
Rotary Potentiometer
Technology:
Carbon Film
Resistance:
500 ~1M
Resistance Tolerance:
10%
Rated Power:
0.05W
Max. Operating Voltage:
AC 50V/DC 10V
Operating Temperature:
-10 ~ +70
Brand:
Howang
Product name:
rotary potentiometer
Certification::
ISO9001;ISO14001
Long rotary life (Rotational life):
300000 cyles
ROHS Y/N:
100% yes
Supply Ability
Supply Ability:
1800000 Piece/Pieces per Month Provide OEM/ODM service
Packaging & Delivery
Packaging Details
1. Standard export carton with inner boxes
2. 1000PCS per carton
3. Carton dimensions: 46*28*30
Delivery time: 12 days
Payment terms:
30% deposit before production,
70% balance before shipment.
Port
shenzhen
Lead Time :
Shipped in 7 days after payment




6mm trimmer potentiometers,trimmer potentiometer 10k



Specification:



Electrical characteristics



Total Resistance

500Ω~1MΩ

Total Resistance Tolerance

±20%

Resistance Taper

B

Max. Operating Voltage

AC100V

Contract Resistance:

  5% or less

 Residual Resistance

 R≤500Ω,with 10Ω,500Ω<R≤1MΩ,2% total resistance



Mechanical characteristics



Total Rotational Angle

240°+/-20°

Rotational Stopper Strength:

0.5Kgf.cm

Rotational Torque

30gf.cm~300gf.cm



Durability
Totational Life:50+/-2cycles
Temperature Range:-55°C~+125°C,
Soldering conditions:  260°C+/-5°C,5sec
Humidity  40+/-2°C,95~95%RH,500+/-10H, Δ  TR+/-5%
Load Life:  70°C+/-3°C,500+/-10hs,   Δ    TR+/-5%
Resistance to heat:  300+/-10°C,3+/-0.5sec,   Δ TR+/-2%
Temperature Coefficient:  +/-250ppm/°C



Assembly Department

The 1st manufacturing section

Production :
F-091 Series ; F-092 Series; F-093 Series;
F-094 Series; F-095 Series; F-24K Series;
F-081 Series; F-082 Series; F-131K Series;
P270 Series; P160 Series; JM10K Series;
JN10K Series; JP10K Series; FSR08 Series;
FSR10 Series; J08K Series Rotary Potentiometer,

Switch and so on
Monthly Output:
12,000,000 pcs

Typical Application:

Mixing consoles and electronic musical instruments,

DVD player/recorders in car,

game consoles and flat panel TV,

electronic toy controllers ,Remote controllers for audio

system and TVS and so on.


The 2rd manufacturing section:
Production:
1.F-08E Series F-11E Series; F-12E Series; F-16E Series

 rotary encoder

and so on
2. Fxx92 Series; F05G Series; F035G Series;
Fxx31 Series; Fxx05 Series; Fxx06 Series;
Fxx43 Series; Fxx45 Series; Fxx2G Series;
F10008GP Series; Fxx46 Series slide potentiometer
and so on
3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer

and so on

Monthly Output:
5,000,000 pcs

Typical Application:
1. Mixing consoles, DVD play / Recorder, Various AV equipment,

Navigation systems in car and so on
2. Electronic musical instruments, Dimmer .protable audio and

 various audio equipment and so on
3. Automobile accessories.


 Automatic Assembling Machines

 Stable and consistent quality

 High efficiency

 Low defective rate



Quality Certificates
Quality Certificates & Environment Guideline
HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC
ISO9001%EF%BC%9A2008%E8%8B%B1%E6%96%87(4)ISO14001%EF%BC%9A2004%20%E8%8B%B1%E6%96%87(4)
ts1694901ts1694902
 environmentrohs1
Contact

shippment & payment:

we have our own manufacture factory and the experrienced manufacture team in Huizhou.

we will give you the lower price and the first-class quality.



This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days



Delivery time: 12 days

Payment terms: 30% deposit before production, 70% balance before shipment.



Attn: Rebecca.Chen

Email:  howangdz@ 163.com

Skype: rebecca.chen87@ yahoo.com

Mobile /Whatsapp/wechat:+86 18675461858





Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.

Tel: 0086-752-6610869
Fax: 0086-752-6610819

Guangdong Huizhou Howang Electronics Co., Ltd

-----------------------------------------------------------------------

Website: http:// www.howang.en.alibaba.com
